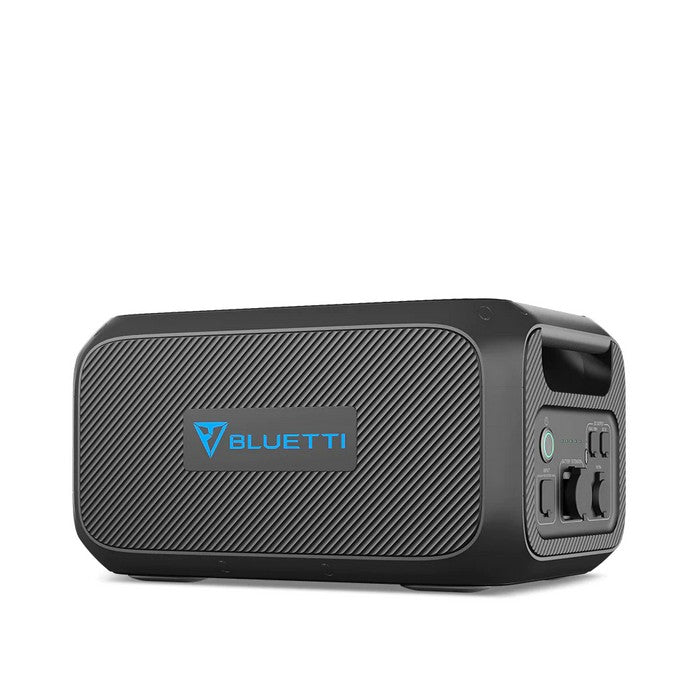

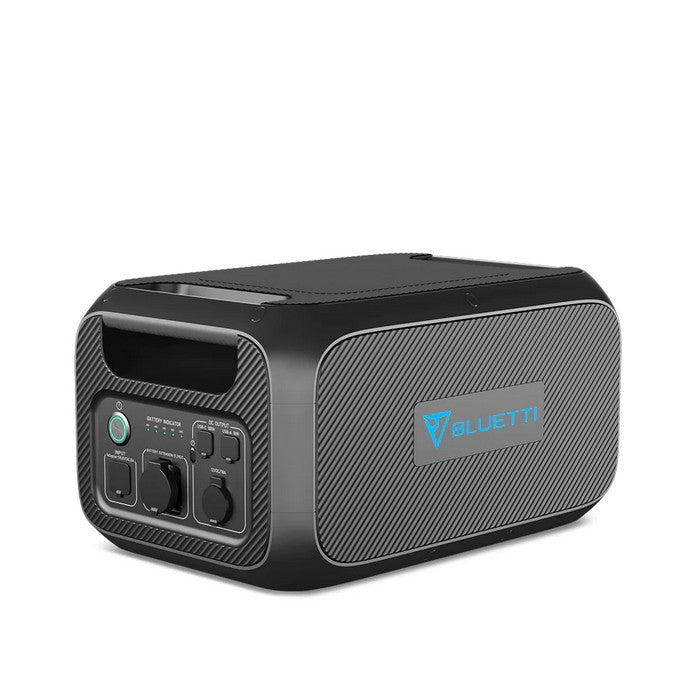

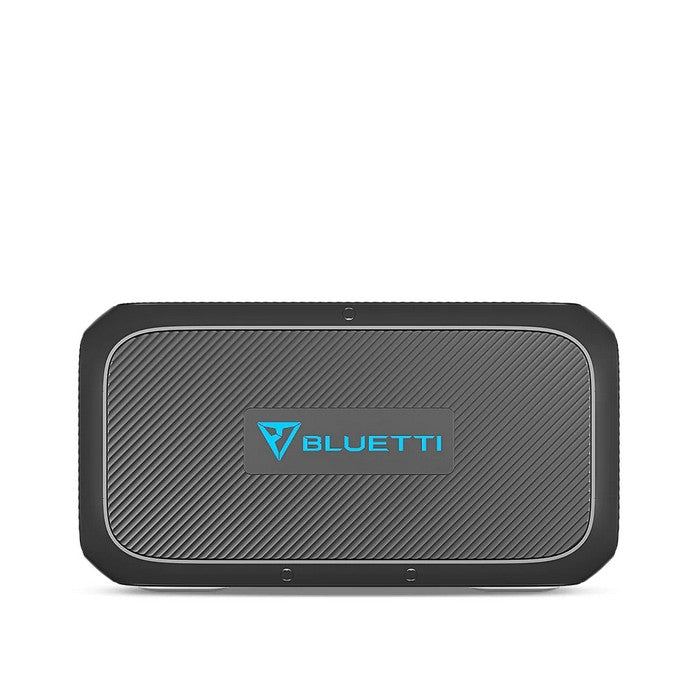

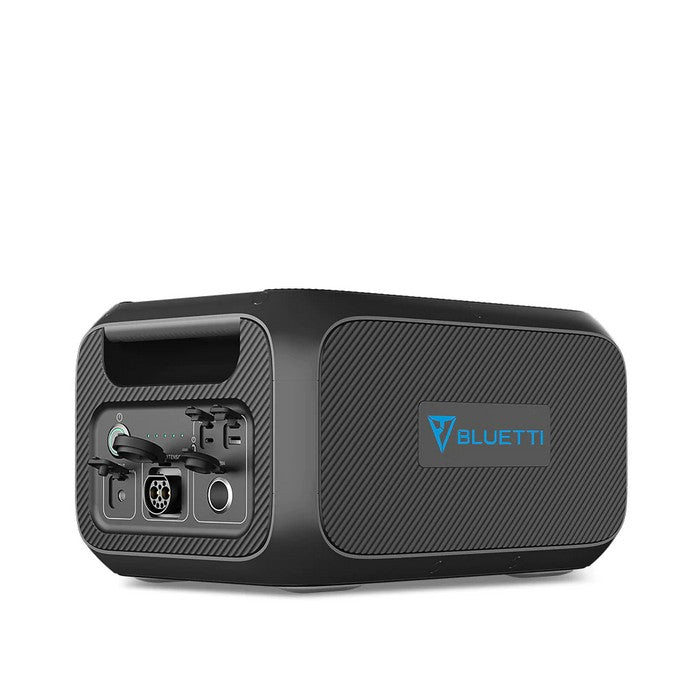

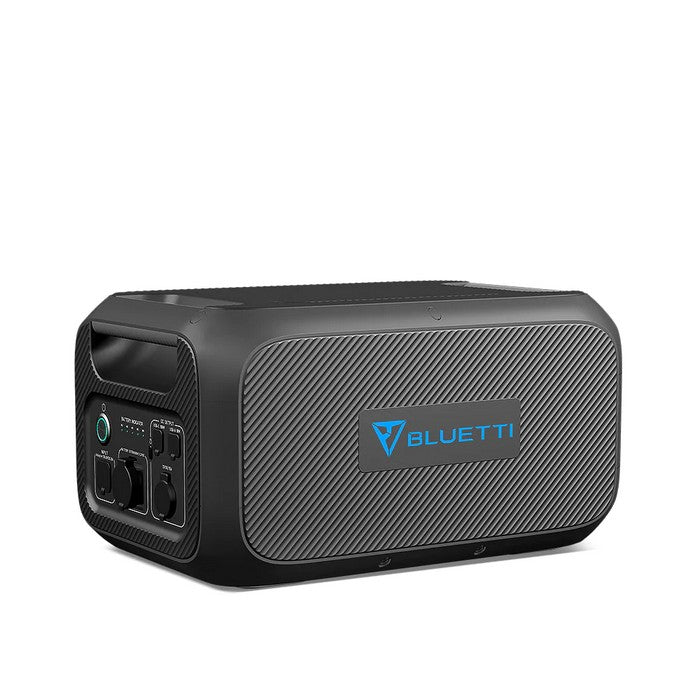

BLUETTI B230 Expansion Battery 2048Wh

BLUETTI B230 suits your ordinary electricity needs at 2048Wh capacity - B230 has ultra-durable LiFePO4 (Lithium Iron Phosphate) battery with over 3,500 life cycles to 80% original capacity.

Expandable battery beast compatible with BLUETTI AC200MAX for a whooping capacity - The total capacity can be doubled and further boosted significantly by connecting upto two Bluetti B230 expansion battery modules with BLUETTI AC200MAX .

Versatile power sources - The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports allow you to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.

Never run out of power with versatile power inputs - Supports solar, AC, car, and lead-acid battery charging to capture power whenever and wherever. You need to buy a separate 500W AC adapter for AC (wall socket) charging. You need to buy a separate DC Charging Enhancer - D050S for solar charging, car charging and lead-acid battery charging.

Specifications

BATTERY INFO

Capacity: 2048Wh (51.2V,40Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc.

OUTPUT

USB-C Port: 1 x 100W Max.

USB-A Port: 1 x 18W USB-A

12V DC Outlets: 1 x 12V/10A (Car Outlet)

INPUT

AC Adapter Input: 500W Max. (Separate 500W AC adapter for AC (wall socket) charging required.

Solar Input: 500W Max., VOC 12-60VDC, 10A (For solar charging D050S DC Charging Enhancer REQUIRED)

Car Input: 12/24V from Cigarette Lighter Port (For car charging D050S DC Charging Enhancer REQUIRED)

Lead-acid battery: 12/24V from Cigarette Lighter Port (For lead-acid battery charging D050S DC Charging Enhancer REQUIRED)

Max Input: 500W

RECHARGE TIME

AC Adapter (400W): ≈5.5~6 Hours

Solar (500W): ≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

GENERAL

Compatibility with AC200Max for Capacity Boost: Yes

Pass-through Charging: Yes

Weight: 48lbs (21.8kg)

Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature: 32°F-104°F (0-40°C)

Storage Temperature: -4-104℉(-20-40℃)

Certifications: UL, CEC, DOE, FCC, CA Prop 65

Click to view B230 User Manual

 Package Contents

What's in the box?

Warranty

24 months warranty by the manufacturer

Product Gallery

Versatile Power Source

Home Backup and Trip Power Bank

 Never Run out of Power



Frequently bought together

1. For solar charging, car charging and lead-acid battery charging of B230 battery, you need to buy a separate D050S DC Charging Enhancer.

2. You can also buy Bluetti's AC200Max with B230 for expanding total capacity.

3.  For charging B230 via AC (wall socket), separate 500W AC adapter is required. You may buy T500 AC adaptor (500W) for charging B230 battery module via AC (wall socket).

FAQs

Can the B230 battery modules be used alone?
A: Yes. B230 has one 100W USB-C, one 18W USB-A and one 12V DC output ports, the battery module can work flawlessly when standalone.

How many B230 battery modules can connect with AC200Max?
A: Up to 2xB230 battery modules can connect with AC200Max.

What are the charging methods for the BLUETTI B230?
A: B230 can be recharged by:
1) 500W AC adapter (Not sold with this item. Customers need to buy this separately.)
2) Car cigarette lighter output or solar panels. (Note: You need to buy a separate DC Charging Enhancer - D050S for solar charging, car charging and lead-acid battery charging. There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.)
