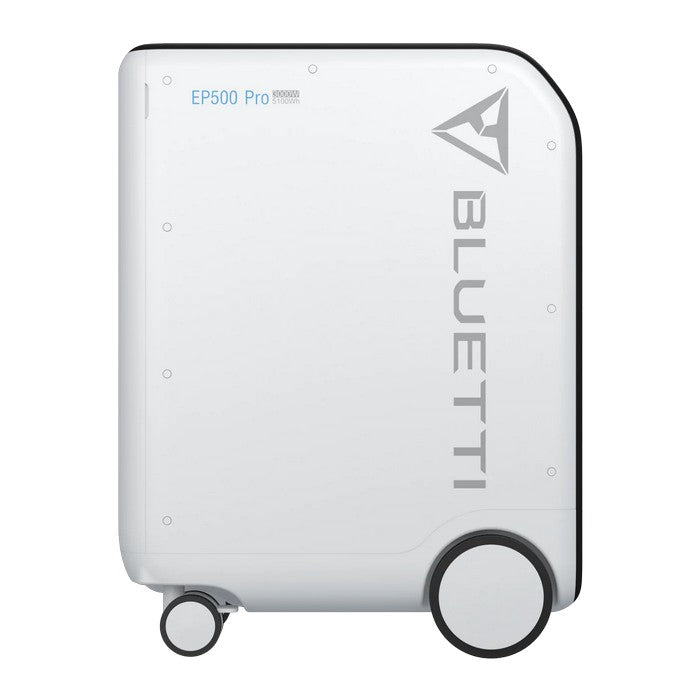

BLUETTI EP500Pro Power Station 3000W 5100Wh

All-in-one Backup Power Station

Flexible recharging with both solar and AC charging options to keep your EP500Pro always on

Not just a great home power backup and energy storage system but a movable power station with with four smooth rolling transport wheels, 3000 Watt rated pure sine wave output - Power to run your entire party, family camping trip, cabin workshops, or even your whole house for a day or two in the event of an unexpected outage.

Multiple devices can be loaded simultaneously with up to 15 outlet sources -  Versatile power outlets allow you to power anything from laptops and air conditioners to your electric vehicles without breaking a sweat.

Seamless UPS backup with In-grid UPS Mode & Flexible UPS Mode(24/7) - The EP500Pro has ability to automatically become your home energy source for essential loads when the electrical grid goes down. It is also a plug-and-play mobile UPS with no installation needed.

Clean and quiet power - Unlike gasoline generators, EP500Pro keeps your lights on and laptops charged without upkeep, fuel, carbon monoxide or annoying noise. Pair it with up to 2400W Max solar input to rapidly recharge or to keep your appliances running without depleting the onboard battery.

Ultra-durable, incredibly safe and innovative power for everyday needs - Its 5100Wh Lithium Iron Phosphate (LiFePO4) battery offers 3,500+ life cycles to 80% original capacity. Integrated Battery Management System (BMS) monitors everything happening in this device, protecting your device from every potential risk in the day-to-day operations.

App Upgradable Firmware - With the built-in dual-core microcomputer and internet connection, the EP500Pro’s firmware can be upgraded through your internet connection.

App Remote Control and Smart Touchscreen

Specifications

General Information

AC Rated Power: 3000 W

                              3000W<load<3750W,2min

                              3750W<load<4500W, 5s

                              4500W<load<6000W, 500ms

                              (peak 6000W)

Net Weight: ≈83kg (182lbs)

Dimensions: 500*300*760mm (22.8*11.8*29.9in)

Battery Capacity: 5100Wh

Battery Cell Type: LiFePO4

Rated Life Cycle: 3500+ Cycles to 80% Capacity

Charge Temperature: 0°C ~ 40°C (32°F ~104°F)

Storage Ambient Temperature: 0°C ~ 45°C (32°F ~113°F)

Working Environment humidity: 10-90%

Certification: PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS

Color: Elegant White

Input Specs

AC Input: 3000W Max

Solar Input: 2400W Max, 12-150VDC, 12Ax2

Output Specs

USB-C: 2*100W

AC: 100-120VAC*5

USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total

Cigarette Lighter: 1*12VDC, 10A

RV (Aviation Port): 1*12VDC, 30A

DC 5521: 2*12VDC, 10A Total

Wireless Charging Pad: 2*5/7.5/10/15W

Click to view EP500Pro User Manual

Package Contents

 What's in the box?



Warranty

60 months warranty by the manufacturer

Frequently bought together

BLUETTI PV350 Solar Panel | 350W - For reference only, 3x BLUETTI PV350: ≈5.5hrs recharge time. Please keep in mind that the number of solar panels you will be able to connect will depend on the solar input specifications of your power station.

BLUETTI PV200 Solar Panel | 200W - For reference only, 5x BLUETTI PV200: ≈6hrs recharge time. Please keep in mind that the number of solar panels you will be able to connect will depend on the solar input specifications of your power station.

30A AC charging cable for EP500Pro - Buy this charging cable to plug your EP500Pro to a 30A wall socket and boost the AC input to 3000W saving charging time for your EP500Pro.

PV voltage step-down module - Buy this if you need to reduce the open-circuit voltage of already installed rigid solar panels in your house to match with the input specs of EP500Pro. Doesn't require changing the original installation and connection method of solar panels in your house. This PV voltage step-down module doesn’t work with solar panels that have built-in microinverters, or open circuit voltage over 550V.

Fusion Box (P030A) for EP500Pro - Buy this if you need to connect two EP500Pro in series to get 240V and achieve double the output power.

Product Gallery

All-in-one Backup Power Station

This class-leading power station brings you the power to run your entire party, family camping trip, cabin workshops, or even your whole house for a day or two in the event of an unexpected outage.



Up to 15 outlet sources allow you to power anything from laptops and air conditioners to your electric vehicles without breaking a sweat.



Seamless UPS Backup

The EP500Pro will automatically become your home energy source for essential loads when the electrical grid goes down. Unlike gasoline generators, BLUETTI EP500Pro keeps your lights on and laptops charged without upkeep, fuel, carbon monoxide or annoying noise.



Safe, Smart, And Continuously Evolving

With the built-in dual-core microcomputer and Internet connection, the EP500Pro’s firmware can be upgraded through your internet connection. The advanced Battery Management System and LiFePO4 chemistry bring the EP500Pro incredible safety and durability. There is no better, only the best!



Use it the way you want!

Designed as a flexible power station to meet various scenarios, the EP500Pro has different usages.



FAQs

Does EP500Pro support App control?
A: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the EP500ProPro remotely, like switching the working mode and upgrading the firmware.

Can I use EP500Pro as a UPS?
A3: Yes. It supports four UPS modes:
1. Standard UPS.
2. Time Control UPS (Pay less for higher electricity consumption).
3. PV Priority UPS (Recommended for regions with sufficient solar energy).
4. Customized UPS.

How do I connect this to my home main panel?
A: We strongly recommend a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel (Needs to be purchased separately). Then connect EP500Pro to this Smart Home Panel.

What is the UPS switching time?
A: There are two types of working conditions of UPS for EP500Pro system.
1) No delay for online UPS;
2) 20ms from standby UPS.

What is the maximum input charging power of the BLUETTI EP500Pro?
A: 4,000W Max.

How can it reach 3,000W AC recharging?
A: Plug it to a 30A wall socket with the 30A AC charging cable for EP500Pro (Optional Purchase).

What kind of solar panels should I choose for EP500Pro?
A8: PV input requirements for EP500Pro:
Open Circuit Voltage: 12-150V
Input Power: 2,400W Max.
Must include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈8hrs*.
5x BLUETTI PV200: ≈6hrs*.
3x BLUETTI PV350: ≈5.5hrs*.
* For reference ONLY.

Can I use my solar roof to charge the EP500Pro?
A: Yes, but please note your solar roof should have:
1. NO micro-inverter
2. an open-circuit voltage of 12-150V
3. MC4 connectors
However, when the OCV falls in 150-550V, you can also use BLUETTI D300S PV voltage step-down module (Optional Purchase) to step down the voltage and achieve solar charging.

Can I connect two EP500Pro together for more power (240V Split Phase Bonding)?
A: Yes. With the Fusion Box for EP500Pro (Optional Purchase), you can connect two EP500Pro in series for 240V/6,000W output.

Can EP500Pro connect with EP500?
A: No. You can only connect EP500 to EP500, or EP500Pro to EP500Pro.

Can it charge and discharge at the same time?
A: Yes.

How do I know whether my appliance can work well with the EP500Pro?
A: Calculate the total wattage of your devices. EP500Pro should work if the load doesn't exceed its rated 3,000W.

How long can it run my device?
A: Running time = Battery capacity × DoD × η ÷ Device rated power.
DoD refers to Depth of Discharge and η is local inverter efficiency.
For EP500Pro, both DoD and η are 90%. If you run a 1,000W microwave oven with it, the running time will be:
5,100Wh × 90% × 90% ÷ 1,000W ≈ 4.1hrs Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.

Is the EP500Pro power station waterproof?
A: No. Also, please do NOT store it in a humid environment for a long time.

When I keep the power plugged in, will EP500Pro stop charging automatically when fully charged?
A: Yes. And when the SOC is less than 100%, EP500Pro will automatically charge again without damage to the battery.

Is it possible to replace the built-in battery?
A: No. If the internal battery pack is faulty or even dead, please contact manufacturer Bluetti's customer service.

How is it different from the EP500?
A: The main differences are:
1) Output power : 3,000W AC power for EP500Pro, while 2,000W for EP500.
2) Solar Input: 2,400W for EP500Pro, while 1,200W for EP500.
3) AC Input: 3,000W for EP500Pro, while 600W for EP500.
4) Output Port: EP500Pro has one more 100W USB-C port and 1 NEMA L14-30 port.
5) Recharging: EP500Pro supports charging from car cigarette lighter and lead-acid battery, while EP500 doesn't.

Why is there a limitation on the power of the equipment loaded by the US version of EP500 or EP500Pro in the mobile UPS mode?
A: When EP500 or EP500Pro is plugged into a home wall outlet, the power output will be limited by the current of the wall plug.
The power of output is subject to these:

• If your home's socket features 120V/15A, the equipment carried by EP500 or EP500Pro cannot exceed 1800W.
• If your home socket features 120V/25A, then EP500 load equipment can be no more than 2000W, and EP500Pro can be no more than 3000W for safety.

After the stated 6000 battery cycles, how much capacity is left in EP500 and EP500 Pro?
A: EP500 and EP500 Pro can maintain above 50% capacity after 6000 cycles.
