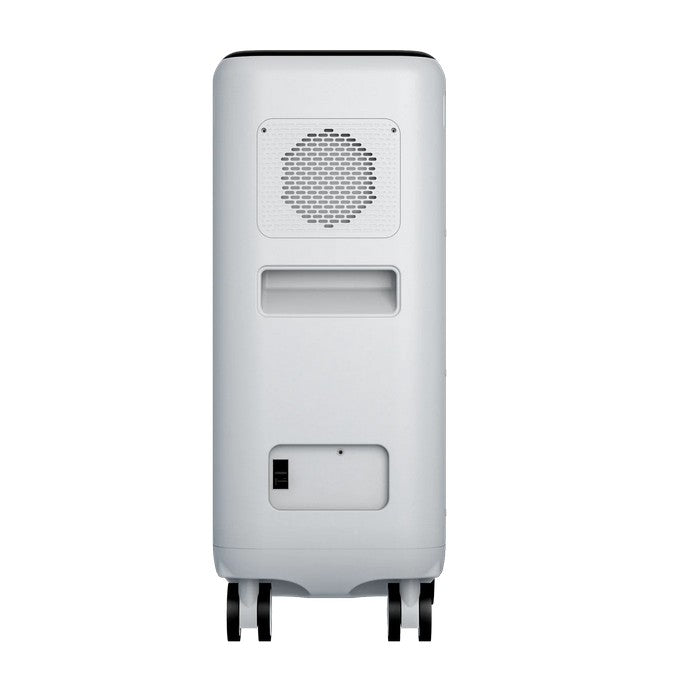

BLUETTI EP500 Power Station 2000W 5100Wh

All-in-one Backup Power Station

Flexible recharging with both solar and AC charging options to keep your EP500 always on

Not just a great home power backup and energy storage system but a movable power station with with four smooth rolling transport wheels, 2000 Watt rated pure sine wave output - Power to run your entire party, family camping trip, cabin workshops, or even your whole house for a day or two in the event of an unexpected outage.

Seamless UPS backup with In-grid UPS Mode & Flexible UPS Mode(24/7) - The EP500 has ability to automatically become your home energy source for essential loads when the electrical grid goes down. It is also a plug-and-play mobile UPS with no installation needed.

Clean and quiet power - Unlike gasoline generators, EP500 keeps your lights on and laptops charged without upkeep, fuel, carbon monoxide or annoying noise. Pair it with up to 1200W Max solar input to rapidly recharge or to keep your appliances running without depleting the onboard battery.

Multiple devices can be loaded simultaneously with up to 15 outlet sources -  Versatile power outlets allow you to power anything from laptops and air conditioners to your electric vehicles without breaking a sweat.

Ultra-durable, incredibly safe and innovative power for everyday needs - Its 5100Wh Lithium Iron Phosphate (LiFePO4) battery offers 3,500+ life cycles to 80% original capacity. Integrated Battery Management System (BMS) monitors everything happening in this device, protecting your device from every potential risk in the day-to-day operations.

App Upgradable Firmware - With the built-in dual-core microcomputer and internet connection, the EP500’s firmware can be upgraded through your internet connection.

App Remote Control and Smart Touchscreen

Specifications

General Information

AC Rated Power: 2000 W

                            2000W<load<2500W,2min

                            2500W<load<3000W,10s

                            3000W<load<4800W,500ms

                            (peak 4800W)

Net Weight: ≈76kg (167lbs)

Dimensions: 500*300*760mm (22.8*11.8*29.9in)

Battery Capacity: 5100Wh

Battery Cell Type: LiFePO4

Rated Life Cycle: 3500+ Cycles to 80% Capacity

Charge Temperature: 0°C ~ 40°C (32°F ~104°F)

Storage Ambient Temperature: 0°C ~ 45°C (32°F ~113°F)

Working Environment humidity: 10-90%

Certification: PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS

Color: Superior Grey, Elegant White

Input Specs

AC Input: 600W Max, 100-264VAC

Solar Input: 1200W Max, 55-145VDC, 20A

Output Specs

USB-C: 1*100W

AC: 220-240VAC*3

       100-120VAC*4

USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total

Cigarette Lighter: 1*12VDC, 10A

RV (Aviation Port): 1*12VDC, 30A

DC 5521: 2*12VDC, 10A Total

Wireless Charging Pad: 2*5/7.5/10/15W

Click to view EP500 User Manual



Package Contents

 What's in the box?



Warranty

60 months warranty by the manufacturer

Product Gallery

All-in-one Backup Power Station

This class-leading power station brings you the power to run your entire party, family camping trip, cabin workshops, or even your whole house for a day or two in the event of an unexpected outage.



Up to 15 outlet sources allow you to power anything from laptops and air conditioners to your electric vehicles without breaking a sweat.



Seamless UPS Backup

The EP500 will automatically become your home energy source for essential loads when the electrical grid goes down. Unlike gasoline generators, BLUETTI EP500 keeps your lights on and laptops charged without upkeep, fuel, carbon monoxide or annoying noise. Pair with up to 1200W MPPT solar input to rapidly recharge or to keep your appliances running without depleting the onboard battery. Remember when you had to worry about a power outage? Worry no longer, Meet BLUETTI EP500.



Safe, Smart, And Continuously Evolving

With the built-in dual-core microcomputer and Internet connection, the EP500’s firmware can be upgraded through your internet connection. The advanced Battery Management System and LiFePO4 chemistry bring the EP500 incredible safety and durability. There is no better, only the best!



Use it the way you want!

Designed as a flexible power station to meet various scenarios, the EP500 Series has different usages.

Frequently bought together

BLUETTI PV200 Solar Panel | 200W - Please keep in mind that the number of solar panels you will be able to connect will depend on the solar input specifications of your power station.

BLUETTI PV350 Solar Panel | 350W - Please keep in mind that the number of solar panels you will be able to connect will depend on the solar input specifications of your power station.

PV voltage step-down module - Buy this if you need to reduce the open-circuit voltage of already installed rigid solar panels in your house to match with the input specs of EP500. Doesn't require changing the original installation and connection method of solar panels in your house. This PV voltage step-down module doesn’t work with solar panels that have built-in microinverters, or open circuit voltage over 550V.

Fusion Box for EP500 - Buy this if you need to connect two EP500 in series to get 240V and achieve double the output power.

FAQs

In-Grid UPS Setup Guide
A: 1)For non-solar-powered household circuits:
An electrician with a professional technician certificate is required to install the in-grid power system, connect the wires of critical equipment from your main electrical box to the BLUETTI Sub Panel (Needs to be purchased separately). When the power fails, it will automatically switch to EP500 or EP500 Pro for the power supply. The connection method: power grid--home main circuit--BLUETTI Sub Panel--EP500 or EP500Pro--critical equipment (such as refrigerator, electric light, and server).

2)Solar-powered UPS:
1.If the open-circuit voltage of the solar panels is within the specified input range of EP500, they can be directly connected into EP500 or EP500Pro through the MC4 port connectors to build up the UPS system.
2.If the open-circuit voltage of your panels exceeds the input limitation of EP500 or EP500Pro, they need to pass the PV voltage step-down module (optional purchase) to decrease the voltage before connecting into the system. The connection method is solar panels--PV voltage step-down module--EP500 or EP500Pro--critical equipment (such as refrigerator, electric light, and server).

What is the UPS switching time?
A: There are two types of working conditions of UPS for EP500.
No delay for online UPS;
20ms from standby UPS.

How much is the loss of AC and DC?
A: In standby state: less than 10W,
AC_ON & DC_OFF: less than 20W,
AC-ON & DC_ON: less than 25W

After the stated 6000 battery cycles, how much capacity is left in EP500 and EP500 Pro?
A: EP500 and EP500 Pro can maintain above 50% capacity after 6000 cycles.

What's the frequency?
A: 60Hz: US, Canada
50Hz: Europe, UK, Australia
Frequency 50/60Hz cannot be switched.

What should I do if the solar panels on the roof of my house exceed the open circuit voltage requirement?
A: You can reduce the open-circuit voltage by buying a BLUETTI PV voltage step-down module (optional purchase). Doesn't require changing the original installation and connection method of solar panels in your house. Through the PV voltage step-down module, the open-circuit voltage of roof panels can be matched with the input specs of EP500/EP500Pro.

Can I use third party solar panel for EP500 and what conditions need to be met?
A: Yes, you can. However, it must meet these criteria:
1)Open Circuit Voltage(OCV): 55-145V/Max.20A, Max.1200W.
2)Must contain suitable MC4 connector.
3)We recommend that the solar panels to be connected should be of the same brand.

After the DC port of 12V30A is opened, can the other DC ports be used?
A: No, for the 30A large-current, the other ports besides 12V/30A RV ports won`t work. In addition, you must cover the rubber plug when the DC is turned on and the 12V/30A port is idle , otherwise it may cause a short circuit if the cable falls in.

Can I connect two EP500 together for more power (240V Split Phase Bonding)?
A: Yes. With the Fusion Box (P020A) for EP500 (Optional Purchase), you can connect two EP500 in series for 240V/4,000W output.

Does the Split Phase Bonding Function apply to one EP500 and one EP500 Pro?
A: No. Only applicable to units of the same model and specifications. For example, two EP500 or two EP500Pro are recommended.

Is the EP500 power station waterproof?
A: No. Also, please do NOT store it in a humid environment for a long time.

How is it different from the EP500Pro?
A: The main differences are:
1) Output power : 3,000W AC power for EP500Pro, while 2,000W for EP500.
2) Solar Input: 2,400W for EP500Pro, while 1,200W for EP500.
3) AC Input: 3,000W for EP500Pro, while 600W for EP500.
4) Output Port: EP500Pro has one more 100W USB-C port and 1 NEMA L14-30 port.
5) Recharging: EP500Pro supports charging from car cigarette lighter and lead-acid battery, while EP500 doesn't.

Why is there a limitation on the power of the equipment loaded by the US version of EP500 or EP500Pro in the mobile UPS mode?
A: When EP500 or EP500Pro is plugged into a home wall outlet, the power output will be limited by the current of the wall plug.
The power of output is subject to these:

• If your home's socket features 120V/15A, the equipment carried by EP500 or EP500Pro cannot exceed 1800W.
• If your home socket features 120V/25A, then EP500 load equipment can be no more than 2000W, and EP500Pro can be no more than 3000W for safety.
