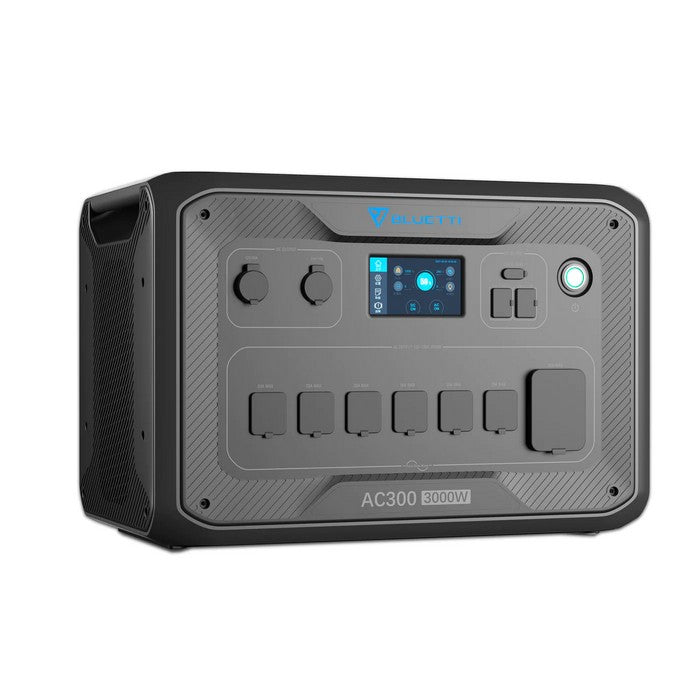

BLUETTI AC300+B300 Power Station Combo 3000W Expandable AC300+1*B300

Clean pure sine inverter power - 3000 Watt AC Pure Sine Wave Inverter (6000W Surge) suitable for sensitive electronics, various appliances and occasions. Handles all your electricity needs from emergency backup to off-grid power source.

Expand power at your will - BLUETTI AC300 supports up to 4×B300 (3072Wh per pack) battery modules which means the 3072Wh capacity of Bluetti AC300 + 1*B300 is expandable up to a groundbreaking capacity of 12288Wh! You can buy extra B300 to increase capacity of your AC300 + B300 and power your basic family needs for DAYS during emergencies or power outages!

240V connection option - Using Bluetti's Fusion Box Pro for AC300, you can pair two units of AC300+1*B300 for 240V / 6000W output.  You can hook up to 8×B300 batteries (4 B300s to each AC300) to drastically boost the total capacity to 24576Wh! - Imagine the unparalleled power center for home comfort that you can build!

24/7 UPS Home Backup - Using Bluetti's Smart Home Panel, you can tie the AC300 power system to your home grid. With this easy setup, you are always ready for power outages and never without power.

*The 5400W input rate combines 2400W solar and 3000W AC, which requires two B300s. Or the rate would be limited upto 3000W with only one B300. Note that the AC input is 1800W by default, it can boost to 3000W with the 30A charging cable for AC300 (sold separately)

Ultra-durable and safe power for everyday needs - Lithium Iron Phosphate (LiFePO4) B300 battery offers 3,500+ life cycles to 80% original capacity. Integrated Battery Management System (BMS) monitors everything happening in this device, protecting your device from every potential risk in the day-to-day operations.

Specifications - AC300

OUTPUT

AC Outlets: 6 x 120V/20A Outlets, 1 x 120V/30A TT-30, 3000 Watt in Total

Inverter Type: Pure Sine Wave

Surge Power: 6000 W

USB-C Port: 1 x 100W Max.

USB-A Port: 2 x 5V/3A USB-A, 2 x 18W USB-A

12V* DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet)

*All Regulated.

Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

AC Charging Cable Input: 3,000W Max. The AC input is 1800W by default, it can boost to 3000W with the 30A charging cable for AC300 (sold separately).

Solar Input: 2,400W Max., VOC 12-150VDC, 12A

Car Input: 12/24V from Cigarette Lighter Port

Maximum Input: 5,400W, with AC and Solar Input Simultaneously

GENERAL

240V Split Phase Bonding: Yes.  Using Bluetti's Fusion Box Pro for AC300, you can pair two units of AC300 + 1*B300 for 240V/6,000W output. You can hook up to 8×B300 batteries (4 B300s to each AC300) to drastically boost the total capacity to 24,576Wh!

App Control: Yes, Wifi & Bluetooth

Scalability: Expandable W/Up to 4 x B300

Simultaneous Recharge & Discharge: Yes

Weight: 47.6lbs (21.6kg)

Dimensions (LxWxD): 20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm)

Operating Temperature: -4-104℉ (-20-40℃)

Storage Temperature: -4-104℉ (-20-40℃)

Certification: UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS

Click to view AC300 User Manual

Specifications - B300

BATTERY INFO

Capacity: 3,072Wh (51.2V, 60Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc.

OUTPUT

USB-C Port: 1 x 100W Max.

USB-A Port: 1 x 18W USB-A

12V DC Outlet*: 1 x 12V/10A (Car Outlet)

*All Regulated.

INPUT

AC Input: 500W Max.

Solar Input: 200W Max., VOC 12-60VDC, 10A

Car Input: 12/24V from Cigarette Lighter Port (For car charging D050S DC Charging Enhancer REQUIRED)

Max Input: 700W, With AC Adapter + Solar Input Simultaneously

RECHARGE TIME

AC: ≈ 6.5~7 Hours at 500W

Solar: ≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈ 30 or 15 Hours (For car charging D050S DC Charging Enhancer REQUIRED)

AC + Solar: ≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature)

Solar + Solar: ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

Dual AC: ≈ 5 Hours at 700W (Extra adapter REQUIRED)

GENERAL

240V Split Phase Bonding: Yes, only with AC300.  Two units of Bluetti's AC300+B300 can be connected with the Fusion Box Pro for AC300 for 240V output and more power.

Pass-through Charge: Yes

Weight: 79.6lbs (36.1kg)

Dimensions (LxWxD): 20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

Operating Temperature: -4-104℉ (-20-40℃)

Storage Temperature: -4-104℉ (-20-40℃)

Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65

Click to view B300 User Manual

Package Contents

 What's in the box? (AC300+1*B300)

Warranty

48 months warranty by the manufacturer

Product Gallery

Expand Power At Your Will

5400W Blazing Input Rate

Plug in the wall outlet and solar panels, you can fast charge the AC300 much faster at a 5,400W Max rate, saving you a lot of charging time. The 5,400W input rate combines 2,400W solar and 3,000W AC, which requires two B300s. Or the rate would be limited upto 3,000W with only one B300. The AC input is 1800W by default, which can boost to 3000W with the 30A charging cable for AC300 (sold separately).

240V Connection Available

With the Fusion Box Pro for AC300, you can connect two AC300s in series for 240V/6,000W output and a total capacity of 24,576Wh(4 B300s for each AC300).

24/7 UPS Home Backup

Using BLUETTI Smart Home Panel, you can tie the AC300 power system to your home grid. With this easy setup, you are always ready for power outages and never without power.

Frequently bought together

Extra B300 batteries - BLUETTI AC300 supports up to 4×B300 (3,072Wh per pack) battery modules which means the 3,072Wh capacity of Bluetti AC300 + 1*B300 is expandable up to a groundbreaking capacity of 12,288Wh!

BLUETTI PV200 Solar Panel 200W  - Connect solar panels and create expandable solar generator kit.

BLUETTI PV350 Solar Panel 350W - Connect solar panels and create expandable solar generator kit.

Fusion Box Pro(P030A) for AC300 - Buy it to pair two units of AC300+1*B300 for 240V/6000W output. You can hook upto 8x B300 batteries (4x B300 to each AC300) to drastically boost the total capacity to 24576Wh!

30A charging cable for AC300 - The AC input for AC300 power system is 1800W by default. Buy it to boost the AC input to 3000W and save charging time.

D050S DC Charging Enhancer - An optional buy in case you want to charge B300 separately with car and lead-acid battery.

FAQs

How many B300 battery modules can connect with AC300?
A: Up to 4.

Do AC300 and B300 support Hot Swapping?
A: Yes.

Can I connect 2×AC300 together to boost the output and capacity?
A: Yes. With the Fusion Box Pro for AC300, you can connect two AC300 in series for 240V/6,000W output and a total capacity of 24,576Wh(4 B300 for each AC300).

Can AC300 be remotely controlled by App?
A: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely like switching the working mode and upgrading the firmware.

Dose AC300 power system have UPS function?
A: Yes. It supports 4 UPS modes:
1.Standard UPS
2.Time Control UPS(Pay less for higher electricity consumption)
3.PV Priority UPS(Recommended for regions with sufficient solar energy)
4.Customized UPS
