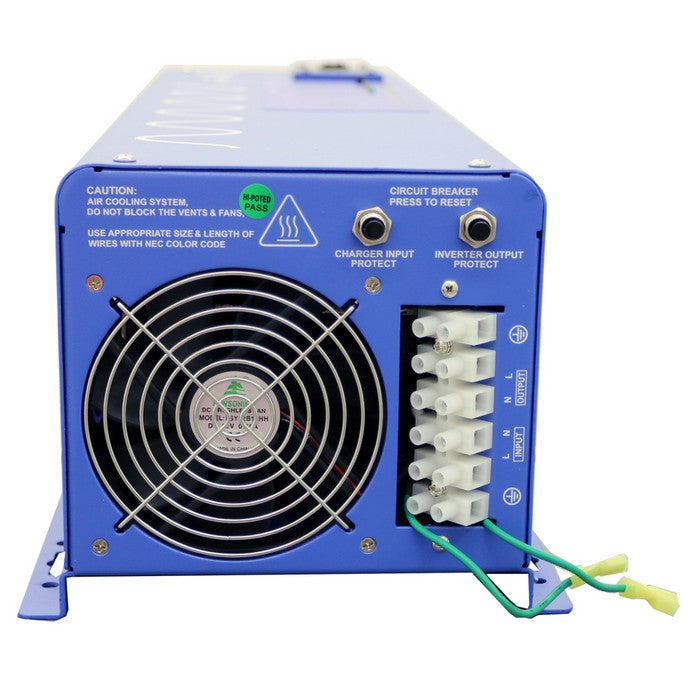

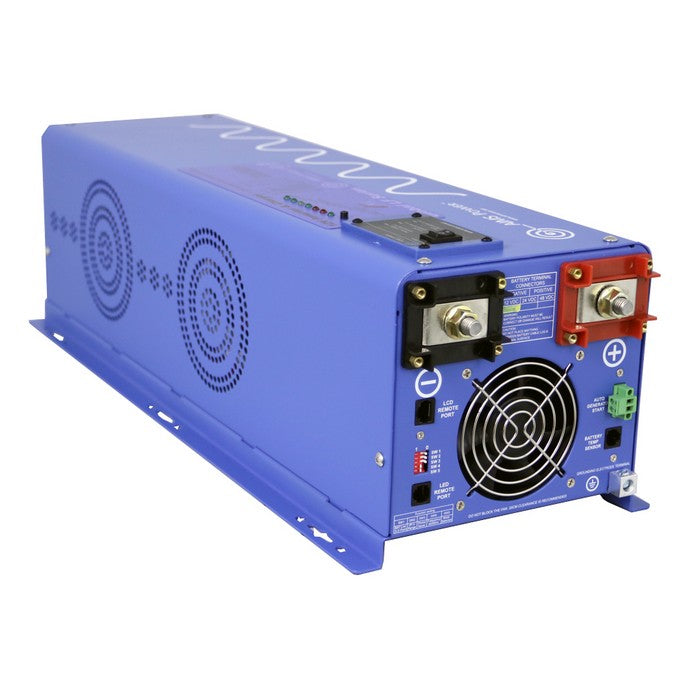

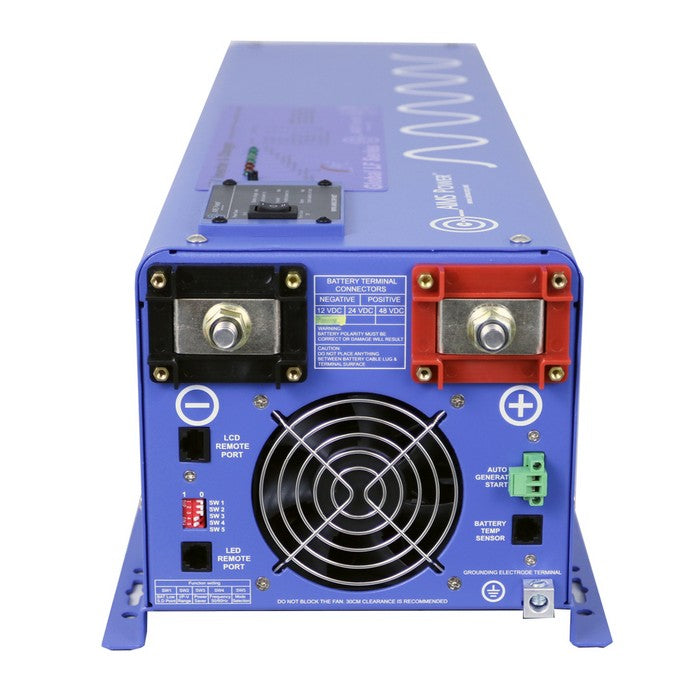

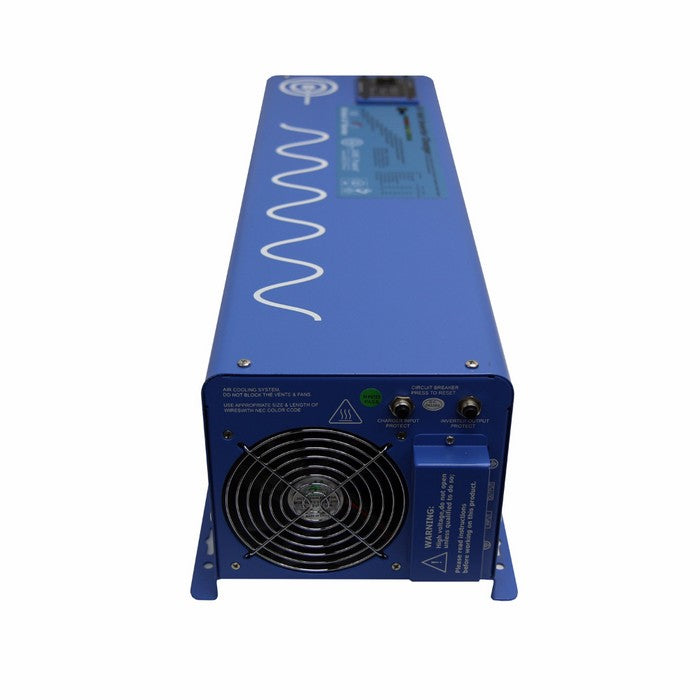

AIMS Power 6000W Inverter Charger 48Vdc to 120Vac Pure Sine Output PICOGLF60W48V120V

Most Popular Feature is its 3x surge capability i.e.18000 watt surge for upto 20 seconds - Inverter has a direct-connect terminal block, which allows users to surpass the 6000 watt capacity and harness its 300% surge power up to 18,000 watts for 20 seconds which is good to run many tools and appliances with startup surges

6000 watt low frequency inverter 110 Vac Single Phase - Most powerful pure sine wave, 120V AC inverter sold by AIMS Power with 6000 watts of continuous power. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere. This industrial grade 6KW inverter boasts a quiet strength and efficiency that makes it a clear and clean alternative to fuel-powered generators that can be noisy, stinky and expensive to buy and maintain.

Automatic Transfer Switch - A built-in 50-amp transfer switch allows the product to automatically switch between a battery bank and shore power. In the event of a power outage, the product will automatically redirect power from your backup battery bank.

Built with a 48 volt DC input - This inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using 12 or 24 volts, which can be an attractive feature for sustainability lovers looking to live as efficiently as possible.

60hz or 50hz selectable dip switch - This inverter will output 120 V ac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means the inverter works internationally and is operable with nearly any electrical system on the planet!

10msec typical transfer time

Multi stage smart charger 80 Amp charges gel, lead, AGM, Lithium batteries. The current control switch allows you to control the amount of current going into the batteries.

7 battery type settings for charger

Battery priority selector - Though the inverter charger is designed with AC priority as default, switch SW5 on the inverter enables the users to select battery priority mode. This battery priority mode allows you to choose your battery bank over the grid so you can use the renewable power you were harvesting before going back to utility power.

Over-Temperature Protection - The inverter is perfect for nearly any job, because it can handle even the most rugged conditions. It’s built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans

Marine Coated and Protected - It is protected from humidity, dust and dirt by virtue of its marine-coated or conformal-coated boards.

Optional 25W power save mode

Positive impact on your wallet -With this inverter slashing your day-to-day fuel costs, savings keep adding up, making this a slam-dunk investment.

Built-in Auto Gen Start Feature - Using a two wire open and close relay, it will automatically start your generator when your battery voltage drops low enough to alarm. The generator can then recharge your batteries while maintaining constant power.

Option to connect Battery temp sensor - You can connect an optional battery temp sensor to this inverter charger to monitor your battery bank and adjust the voltage and current of the charger based on the battery temperature.  This helps preserve and extend battery life. Click here to purchase the Battery temp sensor.

Optional LCD Remote Port - Enables you to connect an optional LCD remote panel to monitor many functions on the inverter from a distance. LCD remote panel is sold separately. Click here to purchase the LCD remote panel.

Specifications

Inverter Output Specifications:

• Continuous Output Power: 6000 Watts
• Surge Rating: 18000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• 100 - 110 - 120 volt ac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC
• Ambient Operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 48V dc
• Low Battery Alarm: 42.0Vdc-44.0Vdc
• Low Battery Trip: 40.0Vdc-42.0Vdc
• High Voltage Alarm: 64.0 Vdc
• Low Battery Voltage Restart: 53.2Vdc
• Idle Consumption: 4.16 amps DC
• Power Saver Mode Idle Consumption: <0.83 amps DC

Charger Specifications

• Output voltage: Depends on battery Type
• Charger Rate: 60A

Dimensions

• Unit Weight: 79 lbs.
• Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches

Click to view User Manual - 6000 Watt Pure Sine Power Inverter Charger 48Vdc to 120Vac

 Package Contents

• The PICOGLF Inverter Charger

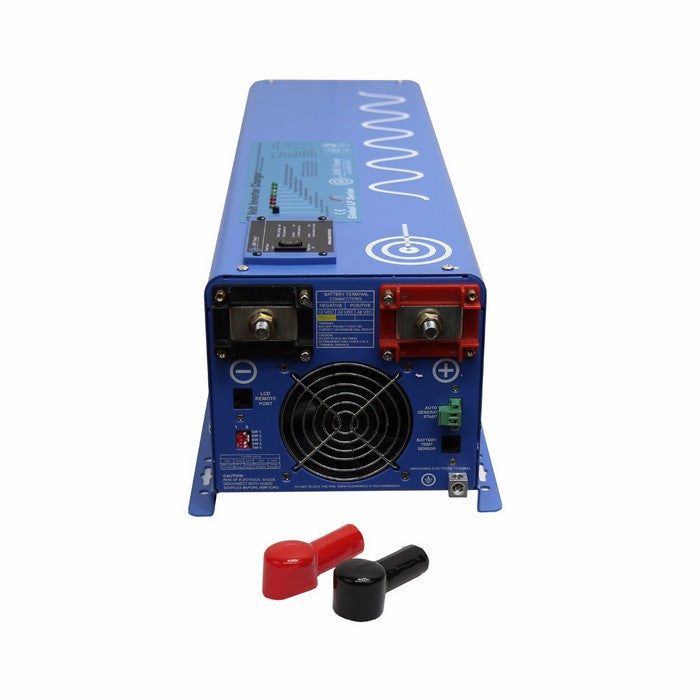

• Red and black DC terminal covers
• AC terminal block cover with two Phillips screws
• Two Flange nuts and 4 Phillips screws (installed on the DC terminals)
• PICOGLF Series Owner’s Manual

Warranty

1 Year Limited Warranty by the Manufacturer

Please refer below for more details on manufacturer's warranty -

All AIMS Power™ products come with warranty coverage against manufacturer defects as follows, from the date of purchase, unless otherwise indicated.

• 1-Year for non ETL (Extract, Transform and Load) units
• 2-Years for ETL (Extract, Transform and Load) units and batteries
• 3 Years for generators
• Batteries – product specific
• Solar products – product specific
• Cables - 10 years

Within the warranty coverage period, AIMS Power™ will either repair or replace, at its sole discretion, the defective product. A restocking fee may be applied if used or missing packaging and/or parts are not returned. Limited and prorated warranties on some products. Any shipping charges that occur as a result of a warranty return or exchange are NOT covered by the warranty and are the responsibility of the customer.

The warranty does not cover the following:

• Products that AIMS Power™ determine, in its sole discretion, to be free of any material or workmanship defects or flaws
• Products evidencing excessive wear, misuse or alteration
• Products with missing or defaced labels, stickers, or other identifying information
• Improper care or storage (e.g. water damage, exposure to extreme heat or cold temperatures, unsanitary environment)
• Alterations or customizations
• Items that were purchased second hand, or from an unauthorized seller
• Items outside of the covered warranty period

Warranty Return Process
It is our goal at AIMS Power™ to provide a comprehensive and hassle-free return and exchange process. As such, please review the below process before initiating warranty claim.

• Contact AIMS Power™ via phone or email to submit your warranty return request and obtain a Return Merchandise Authorization (RMA) number.

Note: Be sure to provide the name from the original order as well as a copy of your receipt. Include a detailed description of the problem.

• An automated email will then be sent to the address indicated on the warranty return request containing further instructions regarding packing, shipping and documentation to include when returning the product as well as an RMA authorization number.
• Once the return is received and inspected an e-mail will be sent informing you that the return has been approved and processed. If there are any issues with the return, an additional e-mail will be sent notifying you of such.

Other Items of note:

• AIMS Power™ DOES NOT cover return shipping.
• Any Product that is returned and deemed to be of working condition or was returned without all of the required information, and the customer has not paid for return shipping, may be disposed of or destroyed after 90 days.
• Any requested information that is not provided in a timely manner could result in delayed processing of your return.
• When shipping the product for a return:
• Ensure the product is packed accordingly to avoid being damaged in-transit. Include original packaging. Use proper protective material to ensure package arrives without damage.
• Ensure some form of shipment tracking is used.
• It is strongly recommended to insure the shipment.
• AIMS Power™ is not liable for products that are lost or damaged in-transit.
• The RMA authorization email will indicate what, if any, other product contents need to be sent in with the returned product.

For any other questions please contact us via phone or email.

Frequently Bought Together

1. LCD Remote Panel REMOTELF - $211.00 - Connects to this inverter to monitor many functions on the inverter from a distance.
2. Battery Temperature Sensor PICGLFBATS - $45 - Connects to this inverter charger to monitor your battery bank and adjust the voltage and current of the charger based on the battery temperature. This helps preserve and extend battery life.
