EcoFlow RIVER 2 Pro + EcoFlow 220W Portable Bifacial Solar Panel

Solar Generator

With 768Wh capacity and 220W solar input, the solar generator can produce up to 1.8kWh daily.

Industry-leading 23% conversion rate with a unique two-in-one bifacial design of the solar panel guaranteeing a fast solar charging speed: 0-100% in 4.5 hours in full direct sunlight.

Smart remote control with EcoFlow app.

EcoFlow RIVER 2 Pro Portable Power Station 800W 768Wh

Huge 768Wh capacity with 800W AC output – With 800 Watt output, RIVER 2 Pro has many of your essentials covered. Turn the X-Boost mode on to run up to 80% of high-wattage home appliances such as a hair dryer, microwave or electric kettle upto 1600W.

Power upto 11 devices with multiple output ports – There’s a space for all your gears with 4 pure sine wave AC outlets, 3 USB-A ports, 1 USB-C port, 1 car charging port and 2 DC5521 ports.

Weighs 7.8kg with compact, travel-friendly deign - A light weight power on the go, RIVER 2 Pro is ready to power all your off-grid and outdoorsy escapades, from boondocking to BBQs at the beach.

Get ultra-fast home backup switchover for essential devices with <30ms EPS Auto-switch - With a switchover speed of less than 30ms, use RIVER 2 Pro as an emergency power supply for outages to keep running essentials from a light machine to your fish tank.

Fully charge RIVER 2 Pro in only 70 minutes – RIVER 2 Pro gets charged ultra-fast from 0-100% using an AC outlet in only 70 minutes. That’s 5x faster charging than other portable power stations in the market.

With four versatile charging options - AC, car, solar, and USB-C charging, charge River 2 Pro without limits -Charge using an AC outlet for ultra-fast charging, charge on the go with car charging, and go off-grid or green with fast solar charging. Additionally, RIVER 2 Pro has an all-new charging option, USB-C. Just plug in and conveniently charge anywhere that has an outlet.

RIVER 2 Pro solar generator can produce upto 1.8 kWh daily – Utilize max 220W solar input of RIVER 2 Pro to fully charge with sun in 4.5-9 hrs. depending on the sun light condition.

Safe and reliable for 10 years of use with LiFePO4 Battery Chemistry - With upgraded long-lasting LFP battery chemistry at its core, charge and empty RIVER 2 Series over 3000 times! With LFP cells, RIVER 2 Series is safe, durable, and highly efficient, even in warm temperatures.

First power station ever that's TÜV Rheinland safety certified - With it’s high safety standard, TÜV Rheinland certification means the security and reliability of RIVER 2 Series is guaranteed.

Stay in Control from anywhere using the EcoFlow app – Use the EcoFlow app to control and monitor RIVER 2 Pro, even from afar. View charging levels, customize settings, and adjust charging speeds, all from the convenience of your phone. Just connect using Wi-Fi or Bluetooth.

Specifications

General

Capacity: 768Wh

Net Weight: Approximately 7.8kg(17.2lbs)

Dimensions: 270 x 260 x 226mm (10.6 x 10.2 x 8.9inches)

App Control: Wi-Fi, Bluetooth

Output and Input

AC Output: 4 Outlets, Pure Sine Wave, 800W total (surge 1600W), 120V ~ 50Hz/60Hz

DC Output: 1 car charging outlet and 2 DC5521 outlets, 12.6V, 10A/3A/3A, 126W Max

USB-A Output: 3 Outlets, 5V, 2.4A, 12W Max

USB-C Input/Output Port: 5/9/12/15/20V, 5A, 100W Max

AC Input: 100-120V, 50Hz/60Hz, 940W Max

Solar Input: 11-50V 13A, 220W Max

Car Input: 12V/24V, 8A, 100W Max

Battery

Cell Chemistry: LiFePO4 Battery

Cycle Life: 80%+ capacity after 3000 cycles

Discharge Temperature: -10°C to 45°C (14°F to 113°F)

Charge Temperature: 0°C to 45°C (32°F to 113°F)

Optimal Operating Temperature: 20°C to 30°C (68°F to 86°F)

Storage Temperature: -10°C to 45°C (20°C to 30°C is best)/14°F to 113°F (68°F to 86°F is best)

Click to view EcoFlow RIVER 2 Pro User Manual

EcoFlow 220W Portable Solar Panel

Two in one 220W Bifacial Portable Solar Panel - With a 220 Watt primary side, and a 155 Watt side on the back for ambient light, you can capture up to 25% more solar energy and charge your portable power station even faster. Try a mirrored surface and you can get up to 80% more energy.

Tempered glass. Built to last - The thin, one-piece tempered glass design makes it five times tougher than comparable panels, it can withstand heat up to 300°F too. Safe to say it can withstand the elements. 4X More Rear Side Heat Dissipation and <10% Power Degradation Over 10 Years compared to standard solar panels.

Designed to be Portable and Compact - 10% smaller than comparable 220 W panels, it saves space with thinner tempered glass, and less surface area required for the same input.

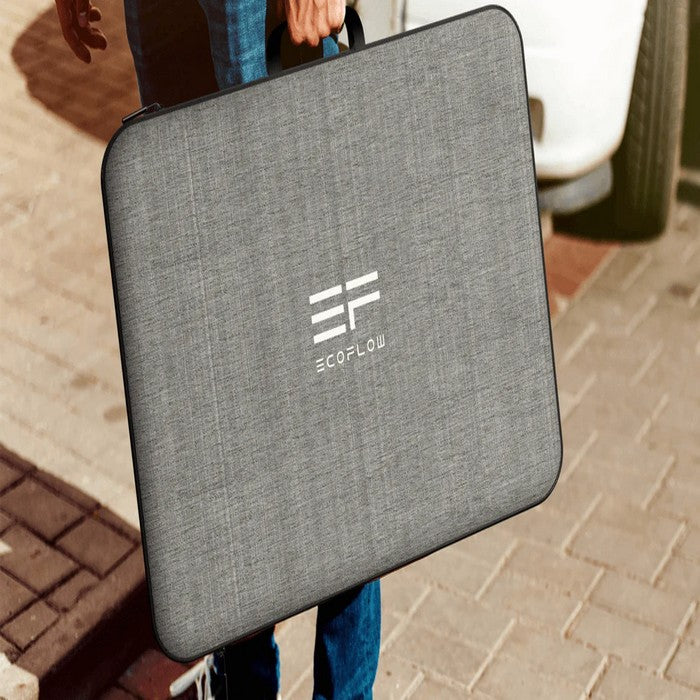

More than a carry case - It comes with its own carry case so you can take it anywhere. Once you arrive at your destination, simply unfold the carry case and use it as a kickstand to get your sun exposure just right.

Waterproof, IP68 rating - We’ve raised the bar with this panel. It's completely water and dust-tight. Rain, wind or shine, your panel is safe with an IP68 waterproof rating.

Specifications

Technical

Rated Power - 220W Front Side / 155W Rear Side

Cell Type - Monocrystalline Silicon

Efficiency - 22-23%

Open Circuit Voltage - 21.8V (Vmp 18.4V)

Short Circuit Current - 13A (Imp 12.0A) Front Side/ 8.8A (Imp8.4A) Rear Side

Interface Type: MC4

General

Weight (Solar Panel) - Approx. 9.5kg (20.9lbs)

Unfolded Dimensions - 82*183*2.5cm (32.3*72.0*1.0 in)

Folded Dimension - 82.0*50.0*3.2cm (32.3*19.7*1.3in)

Click to view EcoFlow 220W Bifacial Solar Panel User Manual

Warranty

EcoFlow RIVER 2 Pro Portable Power Station - Have extra peace of mind with EcoFlow’s 5 years warranty, one of the longest in the industry.

EcoFlow 220 Watt Portable Solar Panel - 12 Months Warranty by EcoFlow.

Package Contents

FAQs

Does the 220W Bifacial Solar Panel generate a full 220W of power?

In most cases, it is normal for a solar panel not to deliver its full nominal power. Some of the reasons why this happens, as well as some suggestions for getting closer to the nominal power figure, are given below –

1. Light Intensity. The amount of light shining on the panel will result in fluctuations to the power output. You are more likely to achieve nominal power output figures closer to those obtained under test conditions when using the product on a clear day during the midday sun, than when using the product in the morning or later in the afternoon. Weather conditions will also affect the amount of sunlight that shines on the panel. For example, you are much less likely to achieve the figures for nominal power in hazy, cloudy or rainy conditions.

2. Surface Temperature. The temperature of the solar panel surface will also affect the amount of power generated. The lower the surface temperature of the panel, the more power will be produced. For example, solar panels generate more power when used during the winter than during the summer, and this is completely normal. Solar panels generally reach temperatures close to 60°C (140°F) during summer. This reduces nominal power by 13%, despite the higher levels of light shining on the panel.

3. Sunlight Angle. In optimal light conditions, the sun's rays should remain perpendicular to the surface of the panel for best performance. Power output is only marginally impacted by sunlight hitting the panel within 10° either side this 90° angle.

4. Panel Shading. The surface of the solar panel should not be shaded during use. Shading caused by shadows, foreign objects and glass can all greatly reduce power output. Performance Issues Caused by

Malfunctioning Panels: If the panel still isn't generating power or its output remains far below expected nominal power figures after addressing the issues above, there may be an issue with the panel itself. Please contact Customer Support for assistance.

How much power can the 220W Bifacial Solar Panel generate under normal conditions?

This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 160W–180W of power in the 220W panel. (Current light conditions are normally 800W–900W/m2 (74.3W–83.6W/ft2) with a panel temperature of 50°C (122°F) under test conditions. Nominal power ratings are based on 1000W/m2 (92.9W/ft2) in AM1.5 conditions with a panel temperature of 25°C (77°F) under test conditions. Power output figures close nominal values were normally observed in the midday sun during the winter.)

What should I know about the operating temperature, storage and use of the 220W Bifacial Solar Panel?

The operating temperature of the Bifacial Solar Panel is -20°C–85°C (-4°F–185°F). The panel should be folded into its original shape and stored in its Protective Case (Kickstand), which provides sufficient protection for the product. To extend the service life of the panel, ensure that the product is not exposed to external forces/impacts when not in use. The solar panel itself is made of glass and must not be dropped, pierced, bent, or sat on. These actions may break the glass and render the panel unusable. Any such damage will not be covered by the free warranty.

The 220W Bifacial Solar Panel has two sides. How can I tell which side is which, and how can I optimize power generation using the rear side of the panel?

The front side of the Bifacial Solar Panel has a junction box. This side of the panel generates power by being positioned perpendicular to the sun's rays. Since the rear side of the panel faces away from the sun, it does not generate electricity in the usual way. Generally speaking, the rear of the panel uses ambient light to increase the overall performance of the product by up to 5%-25%. This figure is higher if mirrors are used, or when ambient light levels are high. Using the product with the rear side of the panel facing the sun generates 80% of the power when compared to using the front side. Using the panel in this way does not have a negative effect on the product.

Can I use non-EcoFlow branded power stations with the 220W Bifacial Solar Panel?

Yes, but only certain types. The power station used must be compatible with MC4 standards in order to work properly. In addition, other brands of power station may not offer the same levels of compatibility as EcoFlow-branded power stations, may have lower nominal power ratings, and may not offer the same levels of performance.

Can I connect both 110W and 220W Bifacial Solar Panels together in series?

Yes, but this is not recommended. While the voltages of the two panels are identical, the current ratings are not. This means that when the panels are connected in series, the current will be limited to that of the 110W panel and the full performance potential of the 220W panel cannot be released, resulting in a 1+2<3 scenario. Please purchase panels of the same size if you intend to connect multiple panels in series.

Can I connect 220W Bifacial Solar Panel in parallel?

Yes, but this is not recommended. 220W solar panel have a maximum current rating of 12A. Though these panels can be connected in parallel, EcoFlow DELTA and RIVER series power stations only support a maximum current of 12A. Parallel connections increase power output by doubling the current, but connecting the panels in this way would result in a 1+1=1 scenario whereby the current is limited to 12A by the connected devices. We do not recommend connecting the panels in parallel, unless you use a different brand of power station with an input current of 20A or above.
