AIMS Power Lithium Battery 12V 50Ah - Deep Cycle Lithium Iron Phosphate (LiFePO4) Battery with Bluetooth Monitoring
Great replacement for lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Easily uses the same space as your existing 12 V battery. Not intended to replace starting batteries.
Durable, high quality LiFePo4 battery with > 10 Year lifespan (with proper maintenance) and backed by 10 years manufacturing defect warranty.

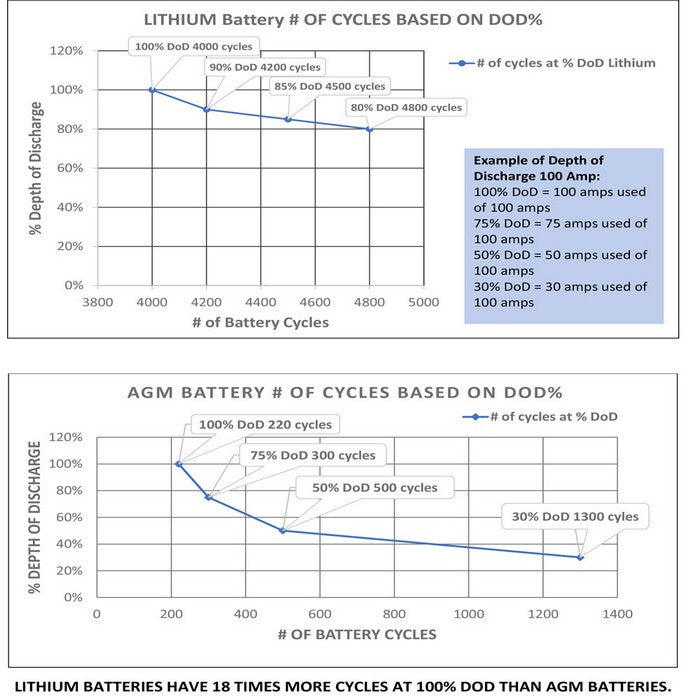

8 times more battery cycles compared to other battery technologies.
Lightweight and Low maintenance.
Green energy with no metal contaminant, fumes or gases.
Packed with advanced battery safety features - stable output voltage, wide operating temperature range, unsurpassed high temperature performance, excessive thermal exposure will not cause a fire, physical damage to battery case will not cause fire, able to withstand over-charge/over-discharge without damage to the battery, short circuit protection, BMS safety protection, backed by an IEC rating.
Bluetooth app allowing remote monitoring - Android Google Play app and Apple app is AIMSBATB.
Specifications
| Electrical Specs |
LFP12V50B |
| Nominal Voltage |
12.8 Volts |
| Nominal Capacity (at .5C, 77°F) |
50 Ah |
| Minimum Capacity (at .5C, 77°F) |
47.5Ah |
| Expected Cycle Life |
>4000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
| Operating Specs |
|
| Charge Method |
Smart charger, constant current, constant voltage |
| Charge Voltage Range (Max 14.6V) |
14.4 -14.6V |
| Continuous Charge Current |
50 Amp Max |
| Charge Temperature |
32° F to 113° F |
| Continuous Discharge Current |
50A Max |
| Peak Instant Discharge Current (10 secs) |
100 A |
| Over Voltage Shutdown |
15.2 +/-.5V |
| Discharge Cut-off Voltage |
8V =/- .5V |
| Discharge Temperature |
-4° F to 149° F (battery will not shut off below -4° F) |
| Storage Temperature |
-4° F to 113° F |
| Self Discharge (stored at 50% SOC) |
< 3%/month |
| Watt hours |
600 watt hours |
| Physical Specs |
|
| Battery Dimensions |
9″L x 5.5″W x 9″H with terminals |
| Unit Weight: |
15.5 lb |
| Shipped Weight: |
16.5 lb |
| Group Size |
1250 |
| Battery post size |
5/16" M8 1.3" long |
| BMS Operation |
|
| Over Charge Protection |
Over charge detection voltage: 3.8 +/- .05V |
| Over charge detection delay time: .96 – 1.4s |
| Over charge release voltage: 3.60 +/-.05V |
| Maximum charge voltage: 3.65 +/-.05V |
| Over Discharge Protection |
Over discharge detection voltage: 2.0V +/- .05V |
| Over discharge detection delay time: .96-1.4s |
| Over discharge release voltage: 2.3V +/- .10V |
| Over Current Protection |
Over current detection delay time: 9 +/- 2ms |
| Over current release condition: Cut load |
| Polarity Reverse Protection |
Yes |
| Short Circuit Protection |
Yes |
| UPC |
840271005805 |
| Warranty |
10 Yr Manufacturer Defect. |
Google and Apple app is AIMSBATB
Click to view User Manual - AIMS Power Lithium Battery 12V 50Ah LiFePO4 Lithium Iron Phosphate
Warranty
10 Years Manufacturing Defect Warranty by the Manufacturer
Please refer below for more details on manufacturer's warranty -
All AIMS Power™ products come with warranty coverage against manufacturer defects as follows, from the date of purchase, unless otherwise indicated.
- 1-Year for non ETL (Extract, Transform and Load) units
- 2-Years for ETL (Extract, Transform and Load) units and batteries
- 3 Years for generators
- Batteries – product specific
- Solar products – product specific
- Cables - 10 years
Within the warranty coverage period, AIMS Power™ will either repair or replace, at its sole discretion, the defective product. A restocking fee may be applied if used or missing packaging and/or parts are not returned. Limited and prorated warranties on some products. Any shipping charges that occur as a result of a warranty return or exchange are NOT covered by the warranty and are the responsibility of the customer.
The warranty does not cover the following:
- Products that AIMS Power™ determine, in its sole discretion, to be free of any material or workmanship defects or flaws
- Products evidencing excessive wear, misuse or alteration
- Products with missing or defaced labels, stickers, or other identifying information
- Improper care or storage (e.g. water damage, exposure to extreme heat or cold temperatures, unsanitary environment)
- Alterations or customizations
- Items that were purchased second hand, or from an unauthorized seller
- Items outside of the covered warranty period
Warranty Return Process
It is our goal at AIMS Power™ to provide a comprehensive and hassle-free return and exchange process. As such, please review the below process before initiating warranty claim.
- Contact AIMS Power™ via phone or email to submit your warranty return request and obtain a Return Merchandise Authorization (RMA) number.
Note: Be sure to provide the name from the original order as well as a copy of your receipt. Include a detailed description of the problem.
- An automated email will then be sent to the address indicated on the warranty return request containing further instructions regarding packing, shipping and documentation to include when returning the product as well as an RMA authorization number.
- Once the return is received and inspected an e-mail will be sent informing you that the return has been approved and processed. If there are any issues with the return, an additional e-mail will be sent notifying you of such.
Other Items of note:
- AIMS Power™ DOES NOT cover return shipping.
- Any Product that is returned and deemed to be of working condition or was returned without all of the required information, and the customer has not paid for return shipping, may be disposed of or destroyed after 90 days.
- Any requested information that is not provided in a timely manner could result in delayed processing of your return.
- When shipping the product for a return:
- Ensure the product is packed accordingly to avoid being damaged in-transit. Include original packaging. Use proper protective material to ensure package arrives without damage.
- Ensure some form of shipment tracking is used.
- It is strongly recommended to insure the shipment.
- AIMS Power™ is not liable for products that are lost or damaged in-transit.
- The RMA authorization email will indicate what, if any, other product contents need to be sent in with the returned product.
For any other questions please contact us via phone or email.
