AIMS Power

AIMS Power LiFePO4 Battery 12V 200Ah with Bluetooth Monitoring LFP12V200B

Regular price $949.00 USD
Regular price $999.00 USD Sale price $949.00 USD
Flash Sale Sold out
Availibility: 3 In Stock

LOWEST PRICE PROMISE - In the rare scenario that you find this item cheaper elsewhere, please let us know. We will beat the price in most cases!

Click to read our Lowest Price Guarantee details.

FREE SHIPPING. Estimated delivery date is 3-10 days from the order date. We will email you tracking number once your order is shipped.

Click to read our detailed Shipping Policy.

AIMS Power Lithium Battery 12 V 200Ah - Deep Cycle Lithium Iron Phosphate (LiFePO4) Battery with Bluetooth Monitoring

Durable, high quality LiFePo4 battery with > 10 Year lifespan (with proper maintenance) and backed by 10 years manufacturing defect warranty

Great for commercial vehicles, off-grid backup power and much more - This innovative battery can replace lead acid, AGM or gel battery applications in RVs, golf carts and boats. This deep-cycle battery is not intended to replace starting batteries.

8 times more battery cycles compared to other battery technologies.

Lightweight and Low maintenance.

Green energy with no metal contaminant, fumes or gases.

Packed with advanced battery safety features - stable output voltage, wide operating temperature range, unsurpassed high temperature performance, excessive thermal exposure will not cause a fire, physical damage to battery case will not cause fire, able to withstand over-charge/over-discharge without damage to the battery, IP66 rated, short circuit protection, BMS safety protection.

Bluetooth app allowing remote monitoring - If you own an AIMS lithium battery and the part number is LFP12V200B the link to the app is below.

Android

Apple

Specifications

Electrical Specs LFP12V200B
Nominal Voltage 12.8 Volts
Nominal Capacity (at .5C, 77°F) 200 Ah
Minimum Capacity (at .5C, 77°F) 190Ah

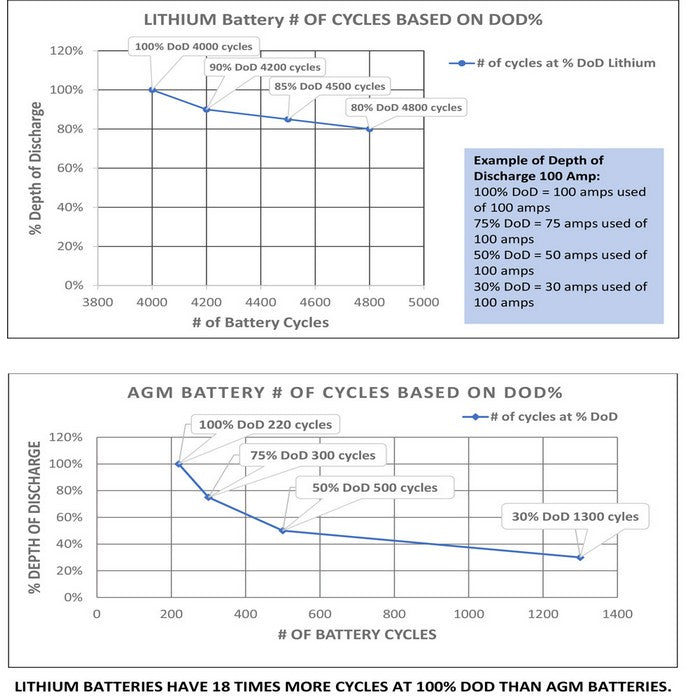

Expected Cycle Life >4000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specs
Charge Method Smart charger, constant current, constant voltage
Charge Voltage Range (Max 14.6V) 14.4 -14.6V
Continuous Charge Current 200 Amp Max
Charge Temperature 32° F to 113° F
Continuous Discharge Current 200A Max
Peak Instant Discharge Current (10 secs) 400 A Max
Over Voltage Shutdown 15.2 +/-.5V
Discharge Cut-off Voltage 8V =/- .5V
Discharge Temperature -4° F to 149° F includes low temp disconnect protection
Storage Temperature -4° F to 113° F
Self Discharge (stored at 50% SOC) < 3%/month
Watt hours 2560 watt hours
Physical Specs
Battery Dimensions 20.5″L x 10″W x 9.25″H
Weight 62 lb
Shipping Weight 64 lb
Group Size 4D
Battery post size 5/16″ 8M 1.7" long
BMS Operation
Over Charge Protection Over charge detection voltage:   3.8 +/- .05V
Over charge detection delay time:   .96 – 1.4s
Over charge release voltage:   3.60 +/-.05V
Maximum charge voltage:   3.65 +/-.05V
Over Discharge Protection Over discharge detection voltage:   2.0V +/- .05V
Over discharge detection delay time:   .96 - 1.4s
Over discharge release voltage:   2.3V +/- .10V
Over Current Protection Over current detection delay time:   9 +/- 2ms
Over current release condition:   Cut load
Polarity Reverse Protection Yes
Short Circuit Protection Yes
UPC 840271005829
Warranty 10 Yr Manufacturer Defect.

** Google and Apple app is AIMSBATB.

Click to view User Manual - AIMS Power Lithium Battery 12V 200Ah LiFePO4 Lithium Iron Phosphate
